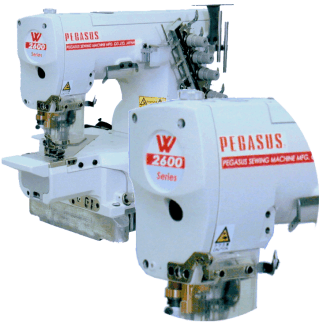

W2600, new cylinder arm , high speed Interlock-stitch

machine with 2- or 3- Needles



Features:

 ü   New needle thread take-up
  • for easier threading, similar to a overlock machine
  • no take-up bar on the outside, increases safety
  • only Pegasus has this new style thread take-up

ü   Adjustable needle bar stroke            by eccentric screw, for low lift                    and high lift

  • the machine can be used for a wider variety of different fabric thickness and different materials

ü Always equipped with thread                 tensions and tread stand of the          three needle machine, also easy          to convert a 2-needle machine into          a 3-needle machine, without                 additional parts of thread guides.

ü   Common front coverfor -01                  (general sewing), -03 (cover                     seaming of overlock seams) and         -08 (hemming) subclasses

  • easy conversion
  • no need to change the front cover







ü New looper thread take-up with              2-step push button

  • for easy threading
  • for very easy removal







ü Higher range of differential feed        ratio adjustment by changing               link position,

  • allows the sewing of a wider variety of different materials with different properties of stretch

ü Embedded hand wheel prevents        threads from winding round it

Very easy threading due to
the new thread take-up system.
Way of thread is reduced by 200 mm.


Universal subclass -01G for general sewing, equipped with guides for cover seaming and hemming operations:

used as -01 for closing of 2 layers of fabric, like gusset seam or similar


used as -03 for cover seaming of Overlock-seams on shoulder- and sleeve seams of T-Shirts, Sweatshirts and similar articles



used as -08 for hemming of sleeves and shirt bottoms, vests etc.


Technical Specifications remarks:
Needles & Threads 2-Needles - 4 Threads and

3-Needles - 5 Threads


Needle distance 2-needles in 3,2; 4,0; 4,8 mm and

3-needles in 5,6 and 6,4 mm


Stitch length max. 4,5 mm
Differential ratio 0,9 ~ 1,3 (0,6 ~ 1,1)
Presser foot lift 5,6 - 7,0 mm (depending on subclass and high or low lift)
max. speed 7000 rpm for W2600S and

other subclasses 6500 rpm

with high lift 6000 rpm;     with FT - 5500 rpm
Looper Mechanism Retractable looper mechanism for easy threading
Lubrication Automatic lubrication system by oil pump
